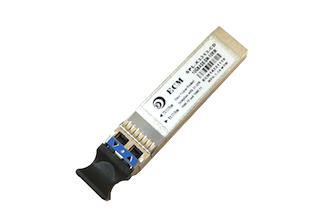

    SFP+
    Features

    - Operating data rate up to 10.3Gbps
    - Distance up to 80km
    - BiDirectional, Duplex, CWDM, DWDM available
    - SC, LC connector      interface
    - Hot Pluggable
    - Operating Temperature 0 ~ 70 °C, -40 ~ 85 °C
    - Compliant with MSA SFP+ specification
    Descriptions

      ECM's SFP+ tranceivers are SFP+ module for duplex, CWDM, DWDM & BiDirectional serial optical data communications.
      Our SFP+ product line supports:

      - 10G Ethernet LAN/WAN

      And are available in the following rated distance option:

      - 300m
      - 2km
      - 10km
      - 20km
      - 40km
      - 60km
      - 80km
      ECM SFP+ optical transceivers are certified by FDA, TUV, UL and compliant with RoHS.
    Product List

    Product Name Application Data Rate Wavelength(nm) Distance Power Budget Laser Interface Media Operating Temperature
    SPI-X8833-CD Duplex 10Gbps 850TX-850RX 300M 5.1dB VCSEL LC MMF C
    SPL-X33S3-CD Duplex 10Gbps 1310TX-1310RX 2KM 9.2dB FP LC SMF C
    SPL-X3313-CD Duplex 10Gbps 1310TX-1310RX 10KM 6.2dB DFB LC SMF C
    SPL-X3343-CD Duplex 10Gbps 1310TX-1310RX 40KM 14dB DFB LC SMF C
    SPL-X5543-CD Duplex 10Gbps 1550TX-1550RX 40KM 17.5dB DFB LC SMF C
    SPL-X3383-CD Duplex 10Gbps 1310TX-1310RX 80KM 25dB DFB LC SMF C

    SBL-XAD13-CD BiDirectional 10Gbps 1270Tx-1330RX 10KM 6.2dB DFB LC SMF C
    SBL-XDA13-CD BiDirectional 10Gbps 1330TX-1270RX 10KM 6.2dB DFB LC SMF C
    SBL-XAD23-CD BiDirectional 10Gbps 1270Tx-1330RX 20KM 12dB DFB LC SMF C
    SBL-XDA23-CD BiDirectional 10Gbps 1330TX-1270RX 20KM 12dB DFB LC SMF C
    SBL-XAD43-CD BiDirectional 10Gbps 1270Tx-1330RX 40KM 16dB DFB LC SMF C
    SBL-XDA43-CD BiDirectional 10Gbps 1330TX-1270RX 40KM 16dB DFB LC SMF C
    SBL-XAD43-CD BiDirectional 10Gbps 1270Tx-1330RX 60KM 21dB DFB LC SMF C
    SBL-XDA43-CD BiDirectional 10Gbps 1330TX-1270RX 60KM 21dB DFB LC SMF C

    SPL-XXX13-XD CWDM 10Gbps 1270nm-1610nm 10KM 11dB DFB LC SMF I, C
    SPL-XXX23-XD CWDM 10Gbps 1470nm-1610nm 20KM 13dB DFB LC SMF I, C
    SPL-XXX43-XD CWDM 10Gbps 1470nm-1610nm 40KM 14dB DFB LC SMF I, C
    SPL-XXX83-XD CWDM 10Gbps 1470nm-1610nm 80KM 23dB DFB LC SMF I, C

    SPL-XXX43-XD DWDM 10Gbps 100GHz  C-band 40KM 15dB DFB LC SMF I, C
    SPL-XXX83-XD DWDM 10Gbps 100GHz  C-band 80KM 26dB DFB LC SMF I, C
