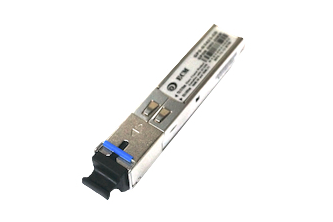

    GPON
    Features

      - Meet ITU-T G.984.2 Class B+, Class C+
      - ONU, OLT application available
      - SC connector interface
      - Hot Pluggable

      - Operating Temperature  0 ~ 70 °C, -40 ~85 °C
      - Compliant with ITU-T G.984.2
    Descriptions


    ECM's GPON SFP transceivers are the leading technology being used in FTTx (FTTH) deployments, especially for both
      ONU, OLT applications and different models support ITU-T G.984.2 Class B+, Class C+

      The GPON current standards have defined OLT downstream data rates up to 2.5Gbps, upstream dta rates to 1.25Gbps. ONU
      downstream data rates up to 1.25Gbps, downstream data rates to 2.5Gbps.

      ECM GPON SFP  optical transceivers are
    certified by FDA, TUV, UL and compliant with RoHS.



    Product List
    Product Name   Form Factor   Application Data Rate Wavelength(nm) ITU-T G984.2 Power Budget Laser Interface Media Operating Temperature
    GPS-G3423-X SFP GPON ONT 1.25Gbps 1310TX-1490RX Class B+ 29dB DFB SC SMF I, C
    GPT-G3423-X SFP GPON ONT 1.25Gbps 1310TX-1490RX Class C+ 29dB DFB SC SMF I, C
    GPS-G4323-X SFP GPON OLT 1.25Gbps 1490TX-1310RX Class B+ 28dB DFB SC SMF C
    GPT-G4323-X SFP GPON OLT 1.25Gbps 1490TX-1310RX Class C+ 28dB DFB SC SMF C
