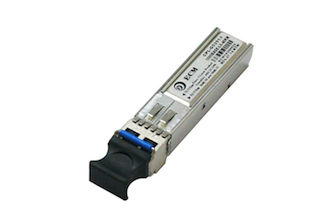

SFP

Features

- Data rate up to 4.25Gbps
- Distance up to 100km
- Support Multi-rate
- BiDirectional, Duplex available
- SC, LC connector interface
- Single 3.3V power supply
- Operating Temperature 0 ~ 70 °C, -40 ~ 85 °C

- Full comply with MSA specification
- Support SAN storage, security or FTTx applications.

Descriptions

ECM's Small Form Factory Pluggable transceivers are fully SFP MSA compliant and supports data communication, such as Gigabit
Ethernet, SDH, Fiber channel, and are available in the following protocols and data rates:

- Fast Ethernet (125Mbps)
- SONET OC-3 (155Mbps)
- SONET OC-12 (622Mbps)
- Gigabit Ethernet (1.25Gbps)
- SONET OC-48 (2.488Gbps)
- 4.25Gbps

Our 1x9 transceivers also are available in a variety of rated distance options depending on the data rate and protocol,
including:
- 500m

- 2km

- 10km

- 20km

- 40km

- 80km
- 100km

ECM SFP optical transceivers are certified by FDA, TUV, UL and compliant with RoHS

Product List

Product Name	Application	Data Rate	Wavelength(nm)	Distance	Power Budget	Laser	Interface	Media	Operating Temperature
DPI-M3323-X	Duplex	155Mbps	1310TX-1310RX	2KM	11dB	FP	LC	MMF	I, C
DPL-M3323-X	Duplex	155Mbps	1310TX-1310RX	20KM	14dB	FP	LC	SMF	I, C
DPI-G8853-X	Duplex	1.25Gbps	850TX-850RX	500M	8.5dB	VCSEL	LC	MMF	I, C
DPI-G3323-X	Duplex	1.25Gbps	1310TX-1310RX	2KM	11dB	FP	LC	MMF	I, C
DPL-G3323-X	Duplex	1.25Gbps	1310TX-1310RX	20KM	14dB	FP	LC	SMF	I, C
DPL-G5523-X	Duplex	1.25Gbps	1550TX-1550RX	20KM	14dB	DFB	LC	SMF	I, C
DPL-G3343-X	Duplex	1.25Gbps	1310TX-1310RX	40KM	20dB	DFB	LC	SMF	I, C

BPX-M3523-X	BiDirectional	155Mbps	1310TX-1550RX	20KM	14dB	FP	SC, LC	SMF	I, C
BPX-G3513-X	BiDirectional	1.25Gbps	1310TX-1550RX	10KM	11dB	FP	SC, LC	SMF	I, C
BPX-G5313-X	BiDirectional	1.25Gbps	1550TX-1310RX	10KM	11dB	DFB	SC, LC	SMF	I, C
BPX-G3413-X	BiDirectional	1.25Gbps	1310TX-1490RX	10KM	11dB	FP	SC, LC	SMF	I, C
BPX-G4313-X	BiDirectional	1.25Gbps	1490TX-1310RX	10KM	11dB	DFB	SC, LC	SMF	I, C
BPX-G3523-X	BiDirectional	1.25Gbps	1310TX-1550RX	20KM	14dB	FP	SC, LC	SMF	I, C
BPX-G5323-X	BiDirectional	1.25Gbps	1550TX-1310RX	20KM	14dB	DFB	SC, LC	SMF	I, C
BPX-G3423-X	BiDirectional	1.25Gbps	1310TX-1490RX	20KM	14dB	FP	SC, LC	SMF	I, C
BPX-G3513-X	BiDirectional	1.25Gbps	1310TX-1550RX	10KM	11dB	FP	SC, LC	SMF	I, C
BPX-G3413-X	BiDirectional	1.25GBPX	1310TX-1490RX	10KM	11dB	FP	SC, LC	SMF	I, C
BPX-G3543-X	BiDirectional	1.25Gbps	1310TX-1550RX	40KM	20dB	DFB	SC, LC	SMF	I, C
BPX-G5343-X	BiDirectional	1.25Gbps	1550TX-1310RX	40KM	20dB	DFB	SC, LC	SMF	I, C
BPX-G3563-X	BiDirectional	1.25Gbps	1310TX-1550RX	60KM	25dB	DFB	SC, LC	SMF	I, C
BPX-G5363-X	BiDirectional	1.25Gbps	1550TX-1310RX	60KM	23dB	DFB	SC, LC	SMF	I, C
BPX-G4583-X	BiDirectional	1.25Gbps	1490TX-1550RX	80KM	24dB	DFB	SC, LC	SMF	I, C
BPX-G5483-X	BiDirectional	1.25Gbps	1550TX-1490RX	80KM	24dB	DFB	SC, LC	SMF	I, C

BPX-23523-X	BiDirectional	2.48Gbps	1310TX-1550RX	20KM	13dB	DFB	SC, LC	SMF	I, C
BPX-25323-X	BiDirectional	2.48Gbps	1550TX-1310RX	20KM	13dB	DFB	SC, LC	SMF	I, C
BPX-43543-X	BiDirectional	4.25Gbps	1310TX-1550RX	40KM	18dB	DFB	SC, LC	SMF	I, C
BPX-45343-X	BiDirectional	4.25Gbps	1550TX-1310RX	40KM	18dB	DFB	SC, LC	SMF	I, C

CXX-MXX43-X	CWDM	155Mbps	1270-1610nm	40KM	23dB	DFB	LC	SMF	I, C
CXX-MXX83-X	CWDM	155Mbps	1270-1610nm	80KM	34dB	DFB	LC	SMF	I, C
CXX-GXX43-X	CWDM	1.25Gbps	1270-1610nm	40KM	19dB	DFB	LC	SMF	I, C
CXX-GXX83-X	CWDM	1.25Gbps	1270-1610nm	80KM	25dB	DFB	LC	SMF	I, C
CXX-4XX43-X	CWDM	4.25Gbps	1270-1610nm	40KM	18dB	DFB	LC	SMF	I, C
CXX-4XX83-X	CWDM	4.25Gbps	1270-1610nm	80KM	24dB	DFB	LC	SMF	I, C

DXL-MXX03-X	DWDM	155Mbps	100GHz C-band	100KM	34dB	DFB	LC	SMF	I, C
DXL-MXX03-X	DWDM	155Mbps	50GHz C-band	100KM	34dB	DFB	LC	SMF	I, C
DXL-GXX43-X	DWDM	1.25Gbps	100GHz C-band	40KM	22dB	DFB	LC	SMF	I, C
DXL-GXX83-X	DWDM	1.25Gbps	100GHz C-band	80KM	27dB	DFB	LC	SMF	I, C
DXL-4XX43-X	DWDM	4.25Gbps	50GHz C-band	40KM	18dB	DFB	LC	SMF	I, C
DXL-4XX80-X	DWDM	4.25Gbps	50GHz C-band	80KM	26dB	DFB	LC	SMF	I, C
