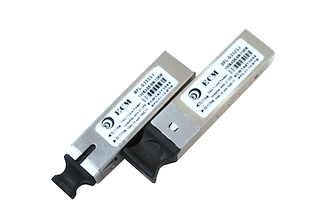

SFF |
|
Features
- Data rate up to 2.48G
- Distance up to 80km
- Support Multi-rate
- BiDirectional, Duplex available
- SC, LC connector interface
- Single 3.3V power supply
- Operating Temperature 0 ~ 70 °C, -40 ~ 85 °C
- Full comply with MSA specification
|
|
|
Descriptions
ECM's Small Form Factor transceivers fully support data communication, such as Gigabit Ethernet ,SDH, Fiber channel, and are
available in the following protocols and data rates:
- Fast Ethernet (125Mbps)
- SONET OC-3 (155Mbps)
- SONET OC-12 (622Mbps)
- Gigabit Ethernet (1.25Gbps)
- SONET OC-48 (2.488Gbps)
Our 1x9 transceivers also are available in a variety of rated distance options depending on the data rate and protocol,
including:
- 500m
- 2km
- 10km
- 20km
- 40km
- 80km
ECM SFF optical transceivers are certificied by FDA, TUV, UL and compliant with RoHS.
|
|
Product List
| Product Name |
Application |
Data Rate |
Wavelength |
Distance |
Power Budget |
Laser |
Interface |
Media |
Operating Temperature |
| DFl-M8853-X |
Duplex |
155Mbps |
850TX-850RX |
500M |
8.5dB |
VCSEL |
LC |
MMF |
I, C |
| DFl-M3323-X |
Duplex |
155Mbps |
1310TX-1310RX |
2KM |
11dB |
FP |
LC |
MMF |
I, C |
| DFL-M3323-X |
Duplex |
155Mbps |
1310TX-1310RX |
20KM |
14dB |
FP |
LC |
SMF |
I, C |
| DFl-G8853-X |
Duplex |
1.25Gbps |
850TX-850RX |
500M |
8.5dB |
VCSEL |
LC |
MMF |
I, C |
| DFl-G3323-X |
Duplex |
1.25Gbps |
1310TX-1310RX |
2KM |
11dB |
FP |
LC |
MMF |
I, C |
| DFL-G3313-X |
Duplex |
1.25Gbps |
1310TX-1310RX |
10KM |
11dB |
FP |
LC |
SMF |
I, C |
| DFL-G3323-X |
Duplex |
1.25Gbps |
1310TX-1310RX |
20KM |
14dB |
FP |
LC |
SMF |
I, C |
| |
|
|
|
|
|
|
|
|
|
| BFX-M3523-X |
BiDirectional |
155Mbps |
1310TX-1550RX |
20KM |
11dB |
FP |
SC, LC |
SMF |
I, C |
| BFX-G3513-X |
BiDirectional |
1.25Gbps |
1310TX-1550RX |
10KM |
11dB |
FP |
SC, LC |
SMF |
I, C |
| BFX-G5313-X |
BiDirectional |
1.25Gbps |
1550TX-1310RX |
10KM |
11dB |
DFB |
SC, LC |
SMF |
I, C |
| BFX-G3413-X |
BiDirectional |
1.25Gbps |
1310TX-1490RX |
10KM |
11dB |
FP |
SC, LC |
SMF |
I, C |
| BFX-G4313-X |
BiDirectional |
1.25Gbps |
1490TX-1310RX |
10KM |
11dB |
DFB |
SC, LC |
SMF |
I, C |
| BFX-G3513-X |
BiDirectional |
1.25Gbps |
1310TX-1550RX |
10KM |
11dB |
FP |
SC, LC |
SMF |
I, C |
| BFX-G3413-X |
BiDirectional |
1.25Gbps |
1310TX-1490RX |
10KM |
11dB |
FP |
SC, LC |
SMF |
I, C |
| BFX-G3523-X |
BiDirectional |
1.25Gbps |
1310TX-1550RX |
20KM |
14dB |
FP |
SC, LC |
SMF |
I, C |
| BFX-G5323-X |
BiDirectional |
1.25Gbps |
1550TX-1310RX |
20KM |
14dB |
DFB |
SC, LC |
SMF |
I, C |
| BFX-G3423-X |
BiDirectional |
1.25Gbps |
1310TX-1490RX |
20KM |
14dB |
FP |
SC, LC |
SMF |
I, C |
| BFX-G4323-X |
BiDirectional |
1.25Gbps |
1490TX-1310RX |
20KM |
14dB |
DFB |
SC, LC |
SMF |
I, C |
| BFX-G3543-X |
BiDirectional |
1.25Gbps |
1310TX-1550RX |
40KM |
14dB |
DFB |
SC, LC |
SMF |
I, C |
| BFX-G3443-X |
BiDirectional |
1.25Gbps |
1310TX-1490RX |
40KM |
14dB |
DFB |
SC, LC |
SMF |
I, C |
| BFX-G4583-X |
BiDirectional |
1.25Gbps |
1490TX-1550RX |
80KM |
24dB |
DFB |
SC, LC |
SMF |
I, C |
| BFX-G5483-X |
BiDirectional |
1.25Gbps |
1550TX-1490RX |
80KM |
24dB |
DFB |
SC, LC |
SMF |
I, C |
| |
|
|
|
|
|
|
|
|
|
| BFX-23523-X |
BiDirectional |
2.48Gbps |
1310TX-1550RX |
20KM |
14dB |
DFB |
SC, LC |
SMF |
I, C |
| BFX-23423-X |
BiDirectional |
2.48Gbps |
1310TX-1490RX |
20KM |
14dB |
DFB |
SC, LC |
SMF |
I, C |
| BFX-23543-X |
BiDirectional |
2.48Gbps |
1310TX-1550RX |
40KM |
21dB |
DFB |
SC, LC |
SMF |
I, C |
| BFX-25343-X |
BiDirectional |
2.48Gbps |
1510TX-1310RX |
40KM |
21dB |
DFB |
SC, LC |
SMF |
I, C |
|
|
|
| |
|
